Rubber Track

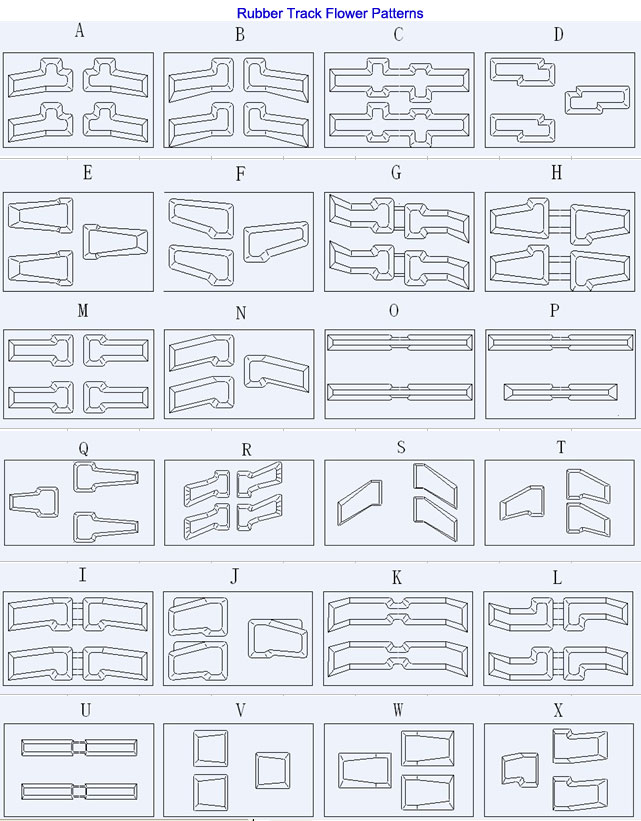

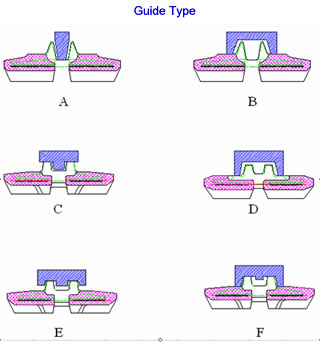

TYPE OF TRACK	D	A	H	E	F	B	C	W	TYPE OF	TYPE OF
width×pitch×links									PATTERN	ROLLER
180×60×?	24	62	14	31	31	44		180	R	A
180×72×?	24	64	15	29	29	44		180	R	A
190×72×?	21	68	17	26.5	26.5	44		190	M	A
200×72×?	24	65	18	28	25	44		200	B	A
230×72×?	24	85	19	24	24	48		230	L	A
350×90×?	26	72	33	29	23	84		350	P	B
250×72×?	24	79	18	30	28	52		250	L	A
320×84×?	44	102	30	48	36	72		320	K	A
320×90×?	32	86	27	51	35	56		320	K	B
320×100×?	36	82	24	33	28	60		320	G	A
400×90×?	44	80	33	33	29	60		400	P	B
420×100×?	46	98	30	51	35	74		420	K	A
450×84×?	46	96	30	50	35	72		450	U	A
450×90×?	37	85	30	47	30	58		450	K	B
500×90×?	46	90	30	50	33	70		500	O	B
600×100×?	44	112	40	60	49	74		600	O	B
600×100×?	Morooka MST800,MST800E,MST800V,MST800VD
700×100×?	42	118	40	76	58	74		700	O	B
700×100×?	Morooka MST1100,MST1500,MST1700,MST1900
762x203x52	AGCO CHALLENGER MT800
800x150x?	Morooka MK250,MK300,MK300S
900x150x?	Morooka MST2500,MST2600,MST3300,Track Carrier 3300
450x110x?	Takeuchi TCR50
550x110x?
762x240x?	CAT Challenger 65D,60
300(12)x100
300(20)x100
400T x 68
470T x228.6
500T x152.5
620H x90.6
620S x98.8
T300 x65.4
T500 x100
230×96×?	26	70	24	23	26	64	30	230	G	C
230×101×?	26	78	24	23	29	66	32	230	C	C
230×48×?	24	72	24	25	26	66	32	230	J	C
250×52.5×?	29	75	24	23.5	26	64	35	250	T	C,E
300×109×?	42	92	24	26	28	84	44	300	H	C,E
260×109×?	32	84	24	24	28	76	36	260	H	C,E
350×109×?	37	90	24	26	17	84	46	350	H	C,E
300×52.5A×?	30	84	17	26	20	72	36	300	E	C,E
300×52.5B×?	42	94	23	23	23	83	46	300	E	C,E
300×52.5C×?	30	88	24	26.5	28	70	36	300	T	C,E
300×52.5D×?	42	94	24	27	29	84	46	300	T	C,E
350×52.5×?	40	90	24	25	23	80	48	350	N	C,E
300×55×?	30	82	24	27	29	73	37	300	F	C,E
350×56×?	38	88	24	24	16	82	48	350	N	C,E
400×144×?	45	98	24	26	21	82	54	400	C	C,E
400×72.5A×?	38	95	24	26	24	88	45	400	J	E
400×72.5B×?	48	108	24	26	21	99	57	400	J	E
450×71×?	42	112	25	28	20	108	48	450	E	C
450×73.5×?	42	118	30	32	34	102	50	450	U	C
450×76×?	48	124	28	32	32	110	60	450	N	C
450×81×?	60	141	24	30	33.5	126	66	450	N	C
450×81A×?	40	116	24	24.5	23	106	54	450	N	C
450×83.5×?	44	114	30	23	25	104	54	450	N	C
500×92×?	50	130	28	28	28	117	64	500	S	C
K300×109×?	26	86	25	25	30	74	34	300	I	D
K400×142×?	28	90	24	28	33	80	34	400	I	D
Y400×144×?	35	129	25	30	29	90	44	400	I	D
K450×163×?	40	116	30	29	33	100	50	450	I	D
Y260×96×?	25	70	23	21	21	60	29	260	I	D
Y280×106×?	29	80	24	28	28	70	36	280	I	D
Y320×106×?	30	80	24	29	29	72	34	320	I	D
Y370×107×?	37	91	24	29	29	82	42	370	I	D
Y400×107×?	39	90	24	30	29	82	44	400	I	D
300×55.5×?	28	78	24(16)	22	27	74	35	300	Q	D
350×75.5×?	38	98	22(16)	24	27	88	42	350	Q	D
400×75.5×?	38	100	24(18)	24	27	90	42	400	Q	D
320×86×?	36	80	28	43	29	60		320	K	D

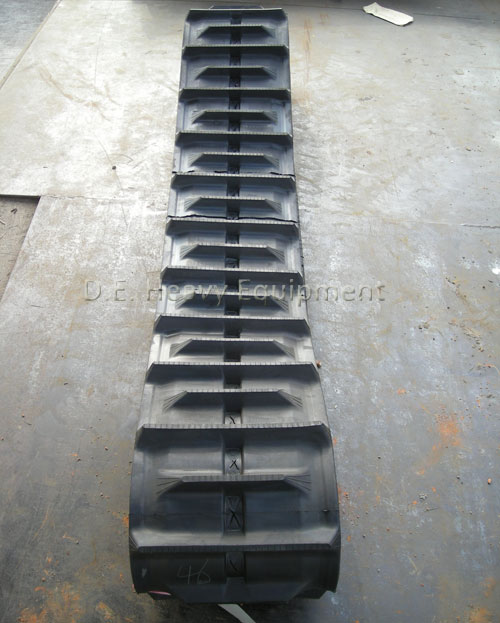

Rubber Track 350x90x46

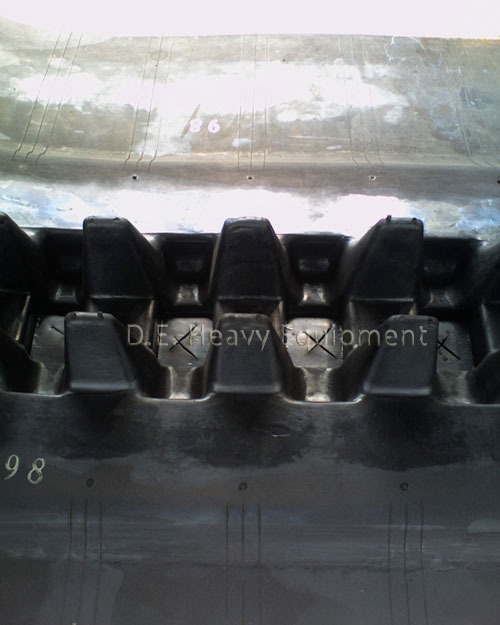

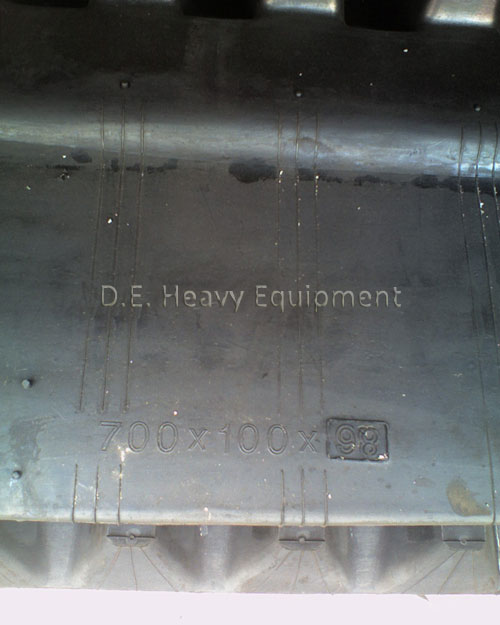

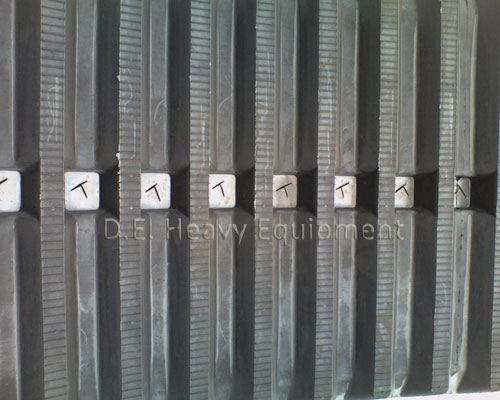

rubber Track 700x100x98

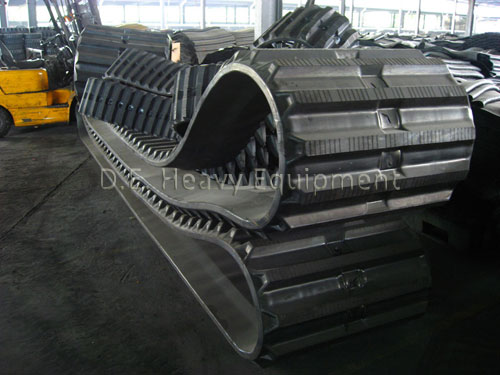

MST3300-1_900x150x68
